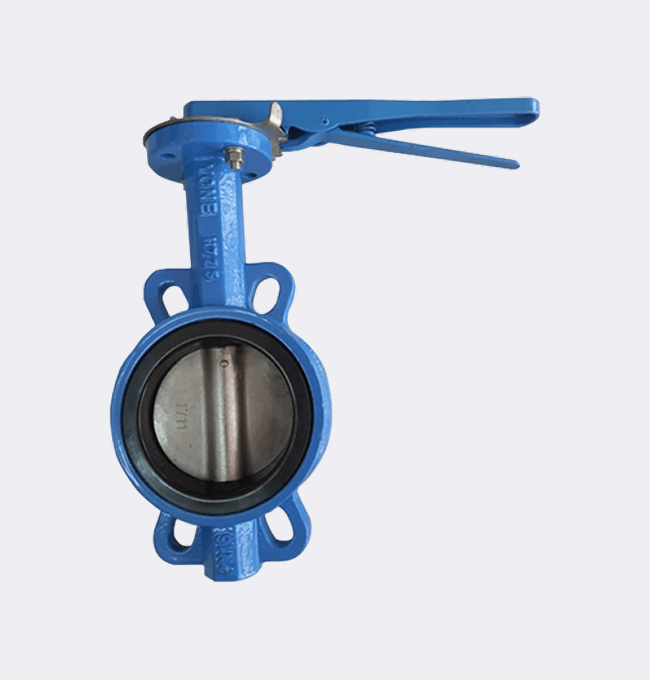

Yone No. 114 Butterfly Valve ANSI Class 150
Cost-Effective Flow Control for Industrial Applications
Introduction: The Importance of Valves in Industrial Systems
In the industrial world, precision and reliability are non-negotiable. Whether managing the flow of water, gas, chemicals, or steam, the role of valves is indispensable. A valve serves as the gatekeeper of a process pipeline, controlling the flow rate, direction, isolation, and safety of industrial media.
Valves come in various forms—ball valves, gate valves, check valves, and control valves—each designed to perform specific functions under unique conditions. Among these, the butterfly valve is widely recognized for its compact design, cost-effectiveness, and ease of operation. It’s no surprise that butterfly valves have become the go-to solution in many industries looking to optimize performance while keeping installation and maintenance costs in check.
One standout product in this category is the Yone No. 114 Butterfly Valve ANSI Class 150. Engineered with durable materials and standardized to international norms, this butterfly valve offers exceptional value and versatility for a wide range of industrial flow control applications.
Complete Product Description: Features, Materials & Specifications
The Yone No. 114 Butterfly Valve ANSI Class 150 is designed to offer reliable and efficient shut-off or flow regulation in medium-pressure pipelines. Its quarter-turn mechanism and simple structure allow for fast operation, making it ideal for systems that require frequent open-close cycling.
Key Design and Functional Features
-
Compact and Lightweight Design
Compared to gate valves or ball valves, the butterfly valve is much lighter and requires significantly less support during installation. This results in reduced structural and piping costs. -
Quick Quarter-Turn Operation
The 90-degree rotation of the valve disc allows for rapid open-close functionality, ideal for applications where speed and reliability are key. -
Low Pressure Drop
The slim profile of the valve disc minimizes flow resistance, resulting in low pressure drop across the valve when in the fully open position. -
Versatile Mounting
The valve is suitable for wafer or lug-style installations, depending on piping configurations and application requirements.
Construction and Materials
Yone ensures quality construction by selecting corrosion-resistant and mechanically robust materials, which enhance the valve’s durability across a range of fluid services.
-
Body Material:
-
FC20 Cast Iron
-
SCS13 (Stainless Steel)
-
SCS14 (Stainless Steel)
-
-
Stem Material:
-
SUS 304 Stainless Steel
-
Optional SUS 316 for high-corrosion environments
-
-
Seat Material Options:
-
NBR (Nitrile Butadiene Rubber)
-
EPDM (Ethylene Propylene Diene Monomer)
-
Silicone
-
VITON
-
PTFE (Polytetrafluoroethylene)
-
-
Disc and Taper Bolts:
-
SUS 304 / SUS 316 Stainless Steel
-
These material combinations make the Yone butterfly valve highly compatible with water, air, chemicals, mild acids, and a variety of industrial fluids.
Size and Pressure Ratings
-
Size Range: 2” – 24”
This wide range makes the valve suitable for both small-scale and large-diameter piping systems. -
Pressure Ratings Available:
-
ANSI Class 150
-
JIS 10K
-
PN 16
-
The ANSI Class 150 rating ensures the valve can be safely used in systems operating under moderate pressure conditions.
Mounting and Operation
The Yone butterfly valve can be operated manually via lever or gear, and is also actuator-ready—compatible with pneumatic or electric actuators for remote control and automation.
Advantages of the Yone Butterfly Valve ANSI 150
Choosing the Yone No. 114 Butterfly Valve means investing in a solution that balances economy with performance. Here are some of the distinct benefits:
-
Cost-Effective Alternative:
Compared to other valve types such as ball valves or gate valves, butterfly valves are significantly more affordable for similar flow control needs. -
Space-Saving Design:
Its compact profile is ideal for installations with limited space, such as marine vessels or tight mechanical rooms. -
Easy Maintenance:
With fewer moving parts, the valve is easier to inspect and service, reducing downtime during maintenance cycles. -
Corrosion Resistance:
Stainless steel components and optional elastomer seats ensure compatibility with corrosive or chemically active media. -
Reliable Shut-Off Performance:
The soft seat design offers bubble-tight shut-off, even at lower torque, making it efficient and safe for isolation duties.
Product Applications: Where Yone Butterfly Valves Excel
The Yone No. 114 Butterfly Valve ANSI Class 150 is engineered to perform in a wide array of industrial and commercial environments. Its versatility and reliability make it suitable for the following sectors:
1. Water Treatment & Distribution
-
Used in both clean and wastewater treatment plants
-
Ideal for large-diameter water pipelines due to its lightweight and corrosion-resistant design
-
Commonly installed in pump stations, reservoirs, and pressure-reducing systems
2. Chemical and Petrochemical Industries
-
PTFE or VITON seat options make it suitable for handling aggressive chemicals
-
Lightweight design reduces structural load in chemical plants
-
Reliable sealing ensures no media leakage during transport or mixing
3. HVAC and Building Utilities
-
Widely used in chilled water and condenser water systems
-
Compact footprint fits within mechanical rooms and risers
-
Easy integration with automated systems via electric actuators
4. Marine and Shipbuilding
-
Stainless steel components provide excellent resistance to saltwater corrosion
-
Space-saving design is ideal for engine rooms and shipboard piping
5. Power Generation
-
Supports auxiliary services like cooling water systems and air handling
-
Suitable for non-critical isolation in power plants where space and weight are a concern
6. Food and Beverage / Pharmaceutical
-
Silicone and PTFE seats allow compatibility with sanitary or clean-in-place (CIP) systems
-
Meets material requirements for low-contamination flow control
No matter the application, the Yone butterfly valve delivers versatility, performance, and economy, making it a go-to solution across industries.
Availability and Distribution: Your Trusted Valve Stockist
As a leading valve distributor and valve stockist, we are proud to supply a wide range of Yone butterfly valves, including the ANSI Class 150 model, to meet the immediate needs of your project.
Why Choose Us as Your Butterfly Valve Supplier?
-
Ready Stock Availability
We maintain consistent inventory of Yone butterfly valves in all major sizes and pressure classes, enabling same-day or next-day shipping. -
Technical Consultation
Our valve specialists are ready to help you select the right material and seat configuration based on your process requirements. -
Custom Solutions
Need actuator mounting, extended stem, or special trims? We offer customization services to suit your system needs. -
Competitive Pricing
As a bulk valve distributor, we offer competitive pricing while maintaining the authenticity and reliability of Yone products. -
Global and Local Reach
Whether you’re managing an industrial plant in Jakarta, a chemical facility in Surabaya, or a shipyard in Batam—we deliver.
Our goal is to be your preferred source for industrial valves—from butterfly valves to ball valves, check valves, gate valves, and control valves—with unmatched product quality and service support.
Contact Us: Order or Consult With Our Valve Experts
Looking for a reliable butterfly valve that combines durability, affordability, and compliance with international standards? We’ve got you covered.
Our team is available to provide pricing, technical data, or assist in urgent sourcing needs.
✅ Request a Quote Now – Fast response and detailed specifications
✅ Talk to an Engineer – Free consultation on valve selection or installation
✅ Visit Our Warehouse – Ready stock available for direct inspection and pickup
Take the next step—contact us today to purchase the Yone No. 114 Butterfly Valve ANSI Class 150, or to learn more about our full range of industrial valves and actuation solutions.
We are your trusted valve distributor and valve stockist, ready to support your industrial operations with fast delivery, technical reliability, and long-term service excellence.
